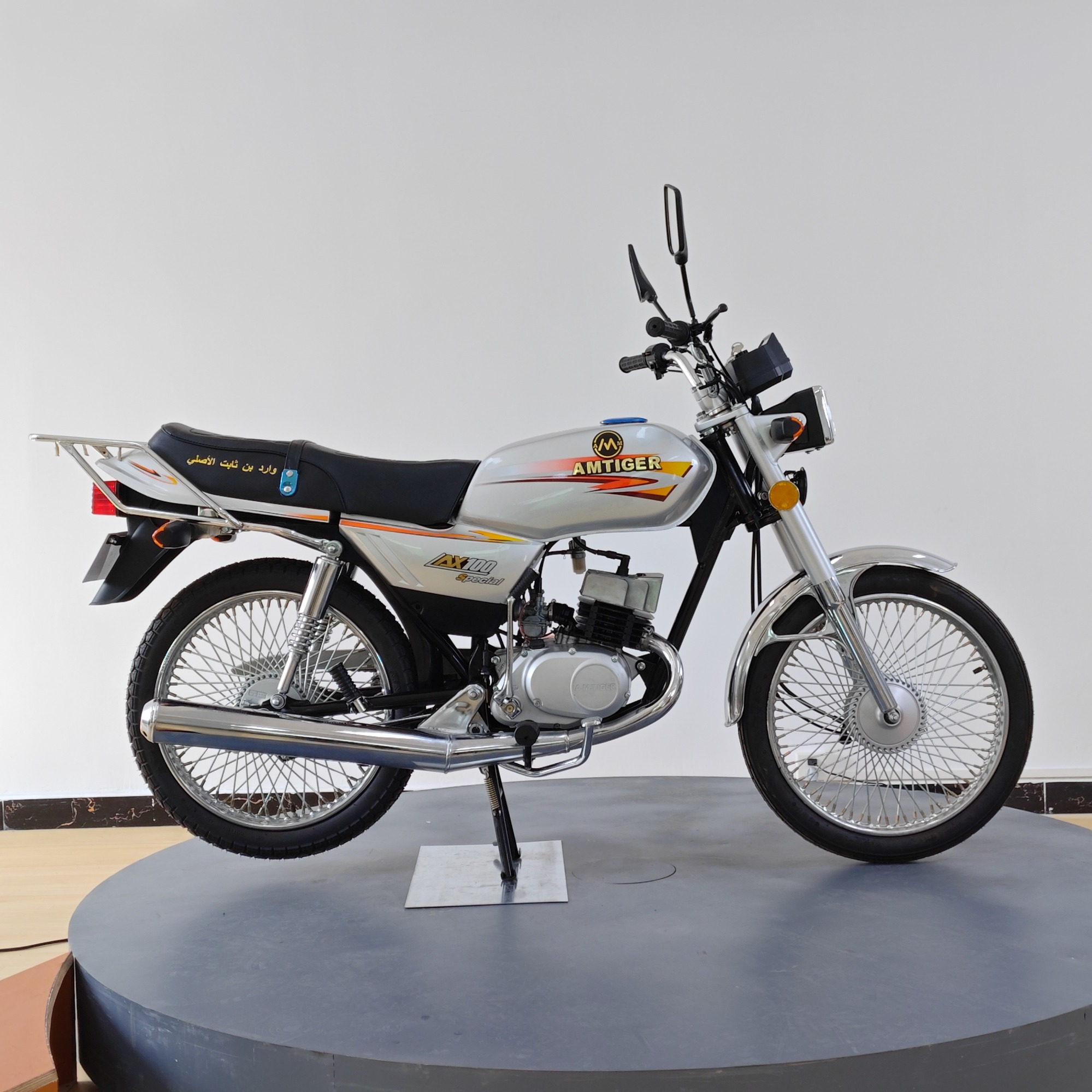

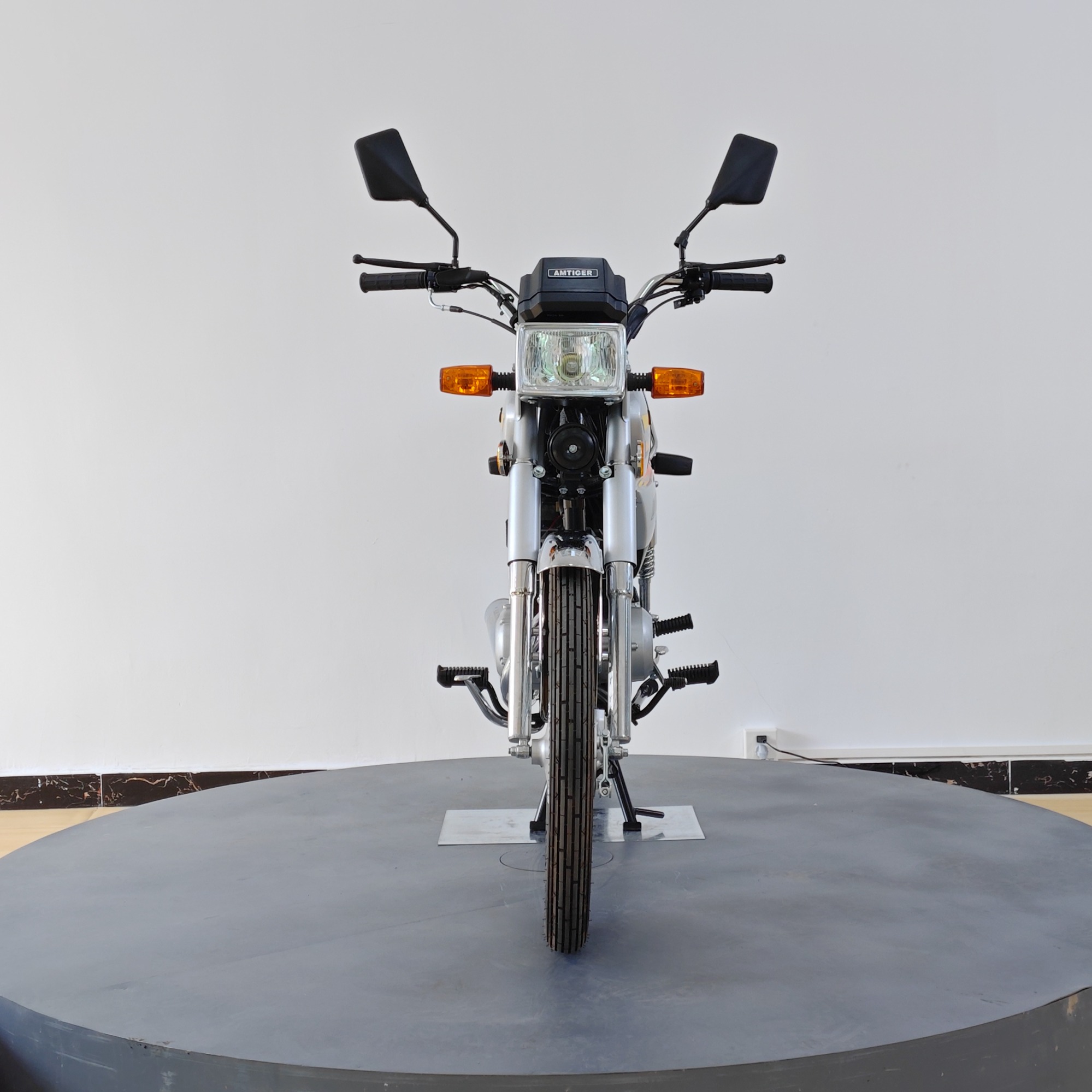

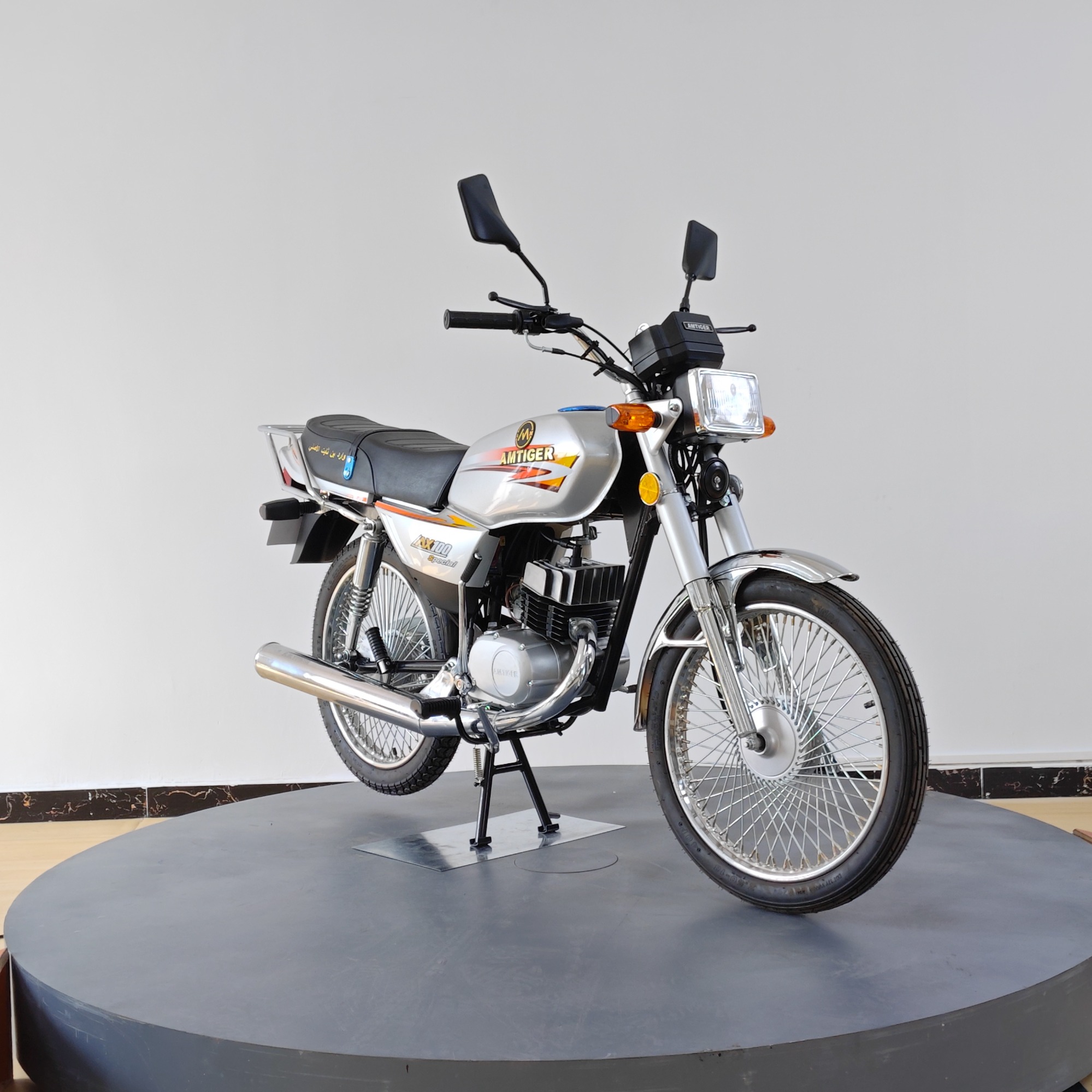

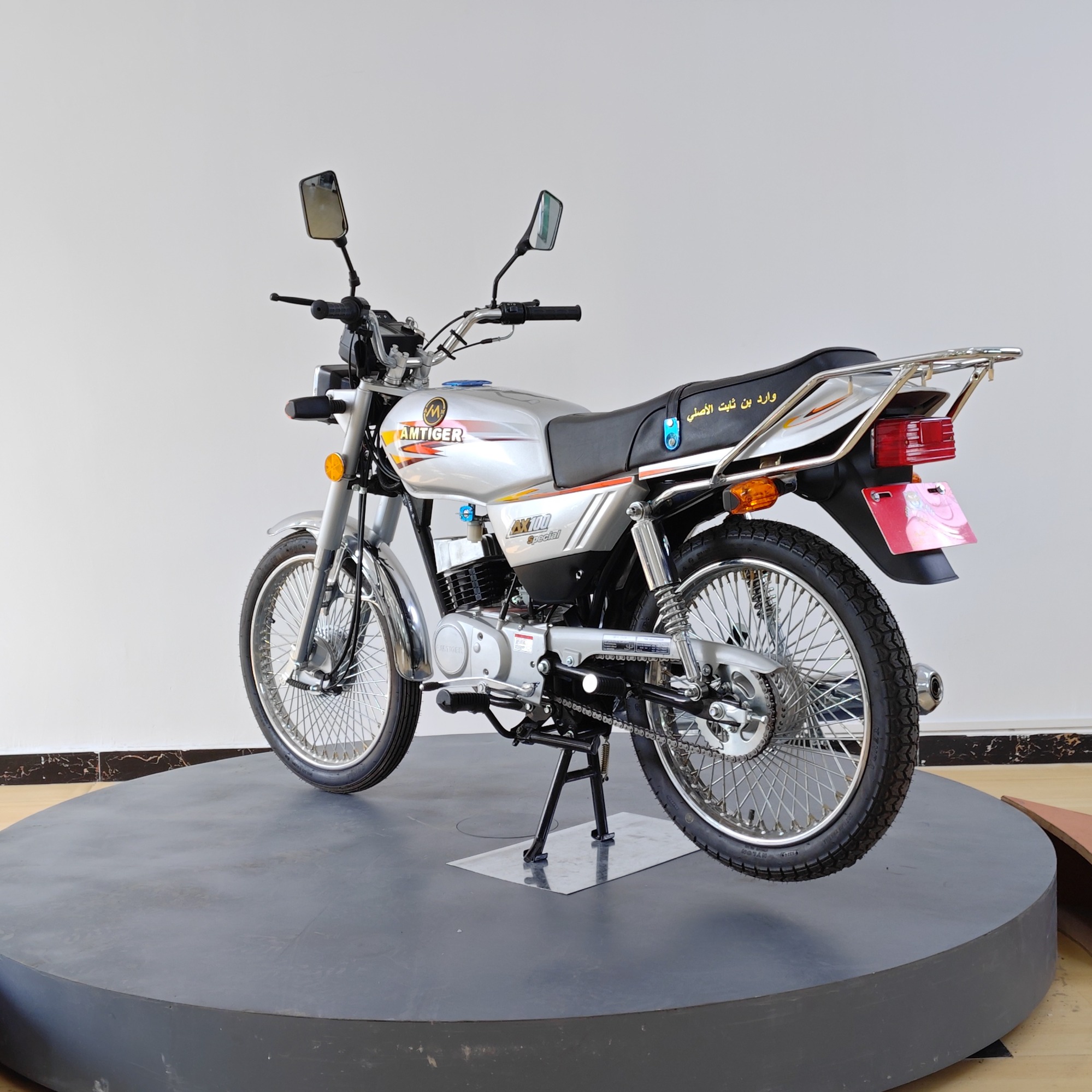

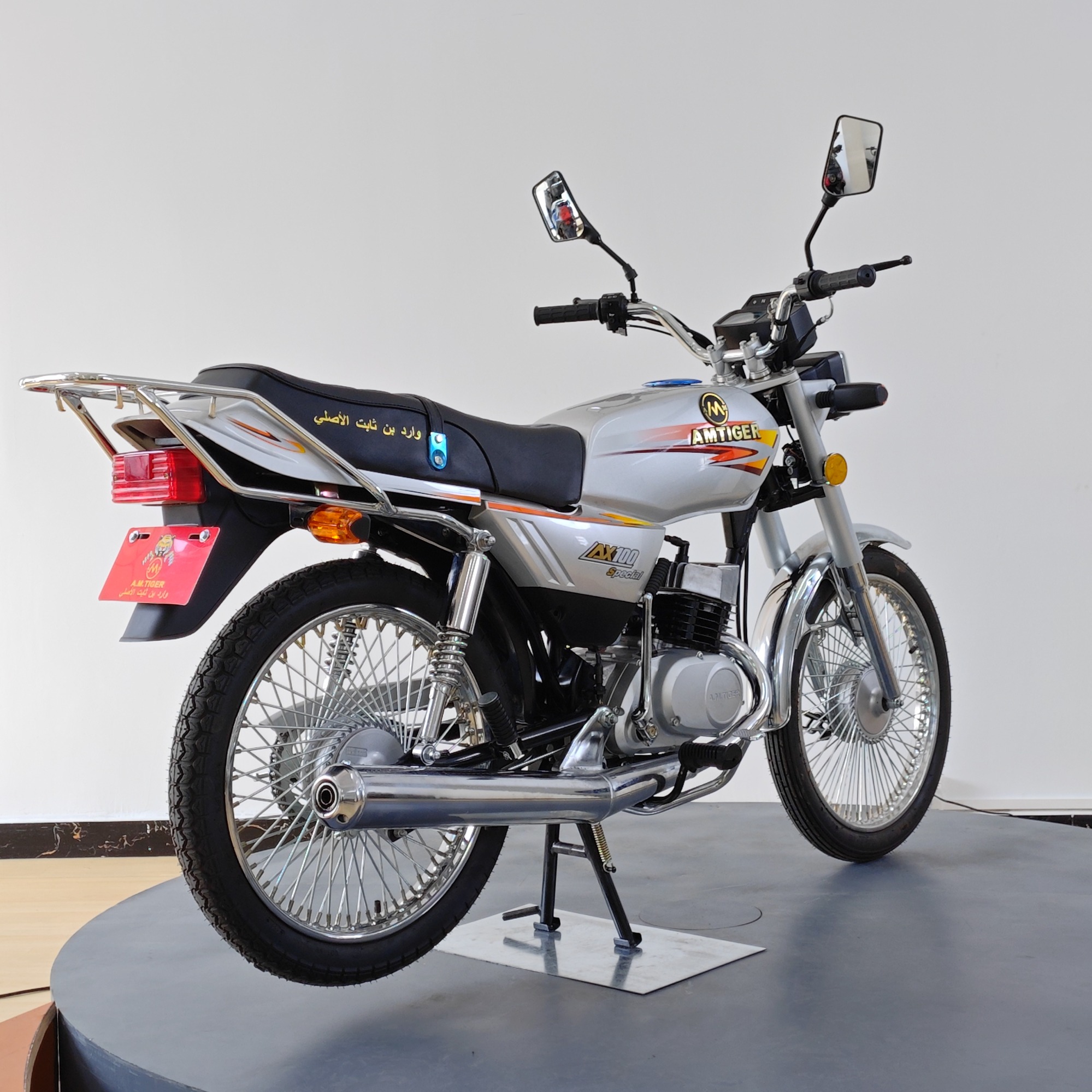

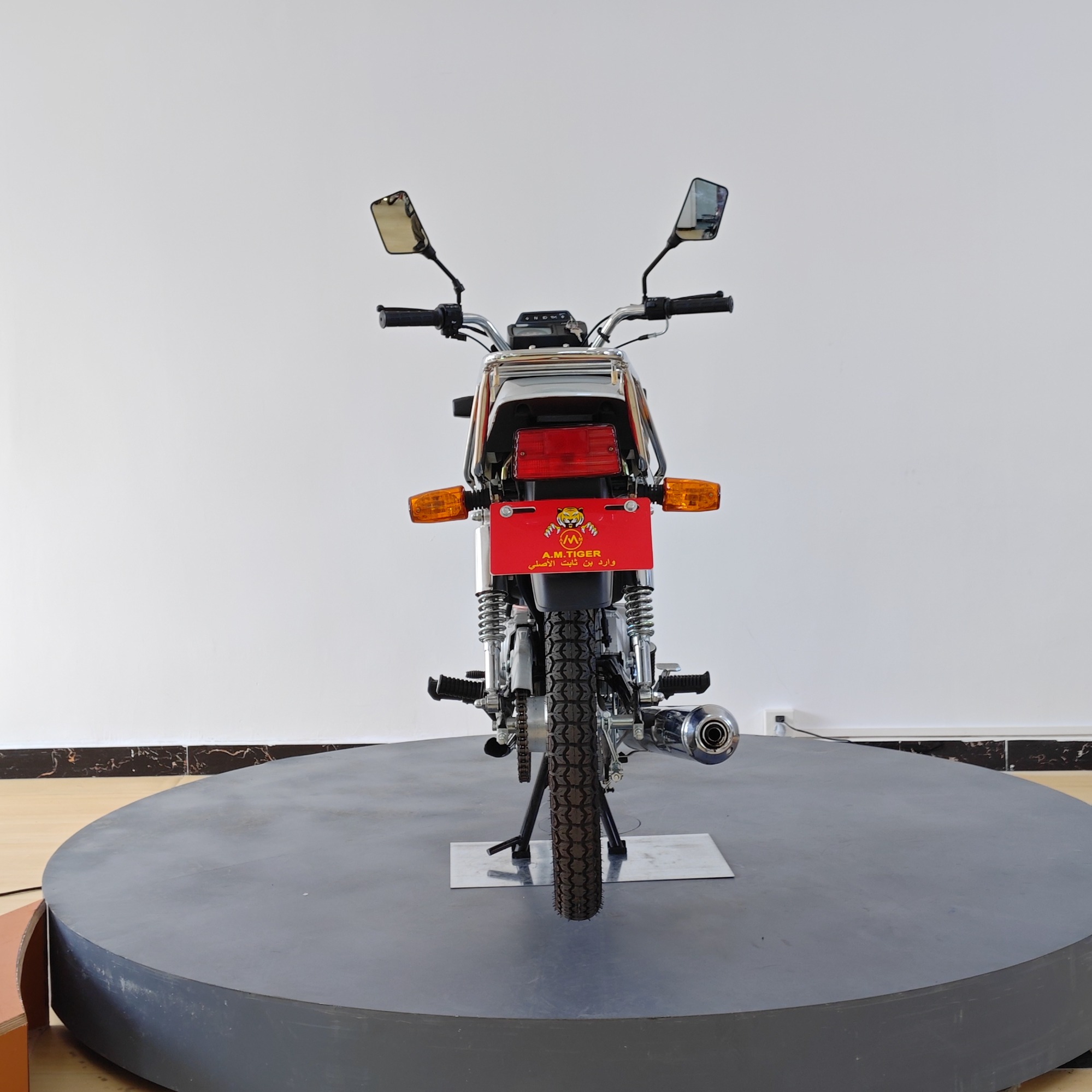

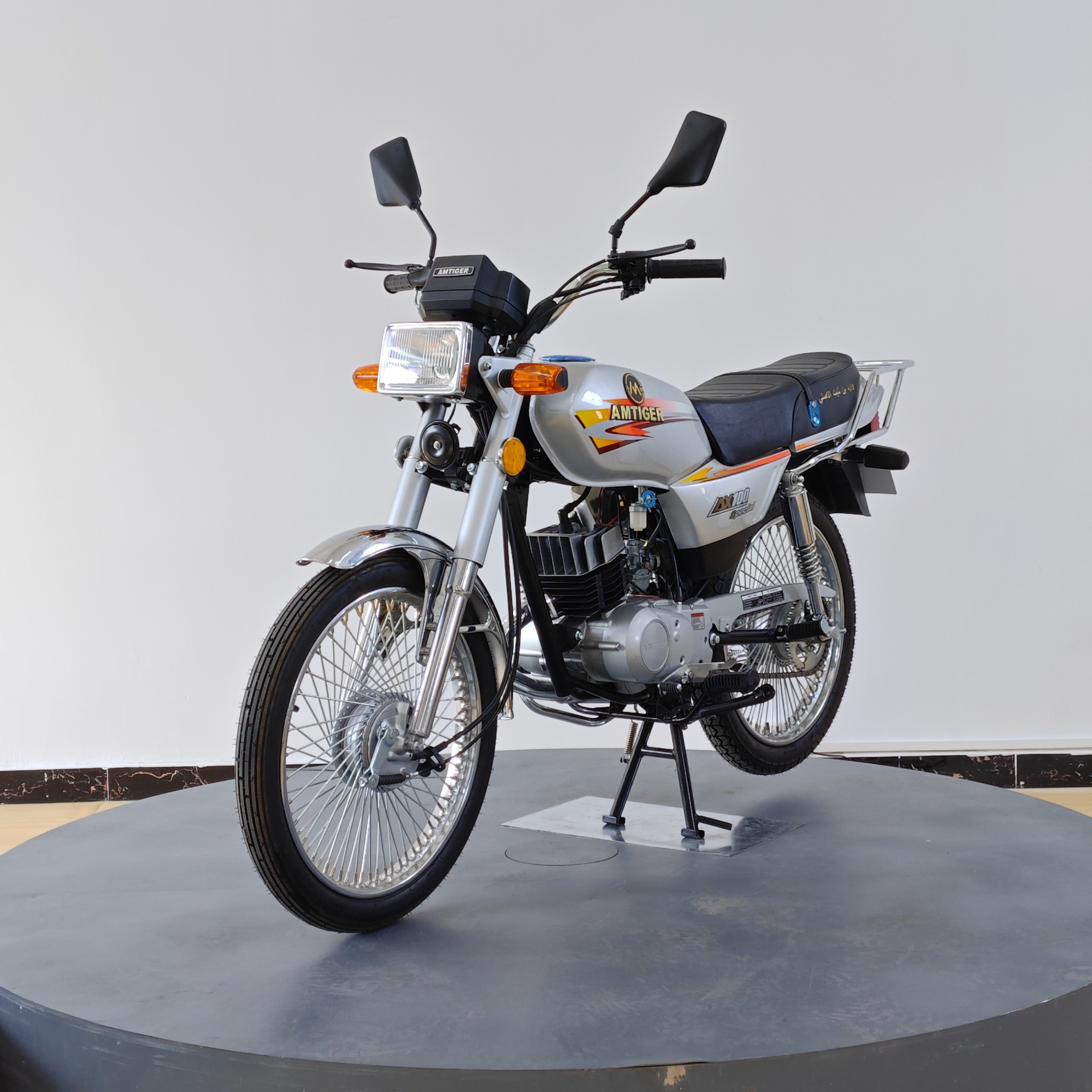

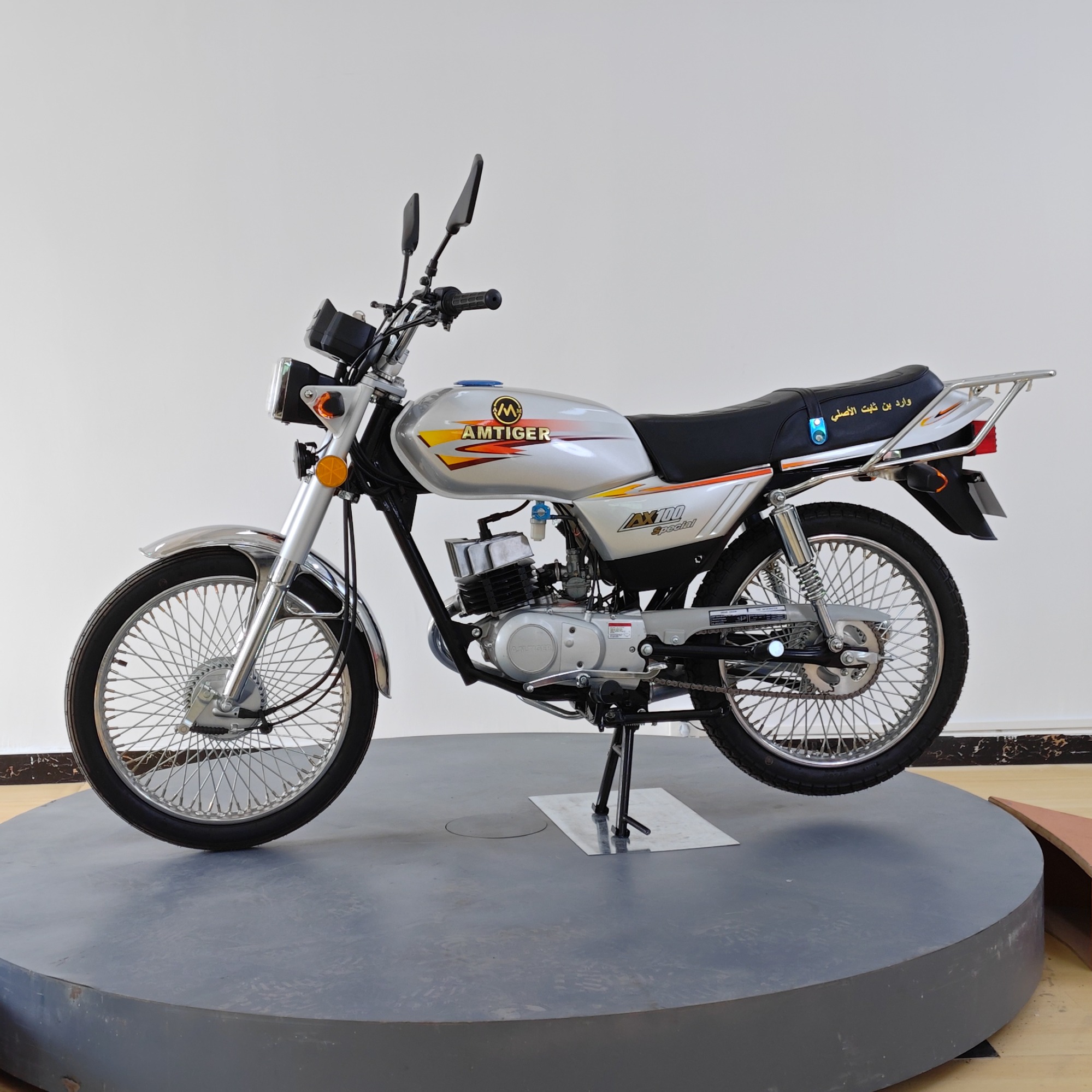

| MODEL | CJ-AX100 |
| SPECIFICATIONS: | |

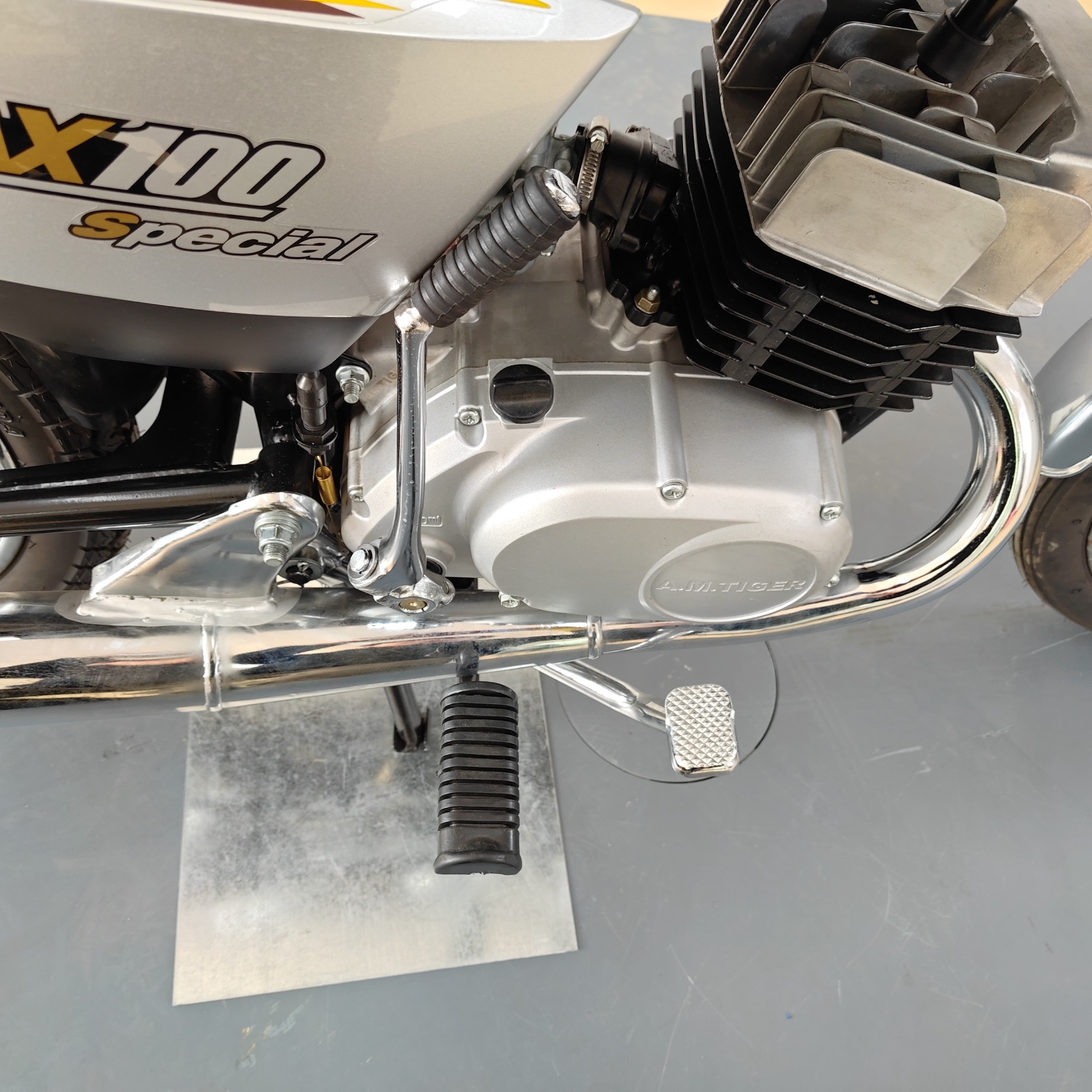

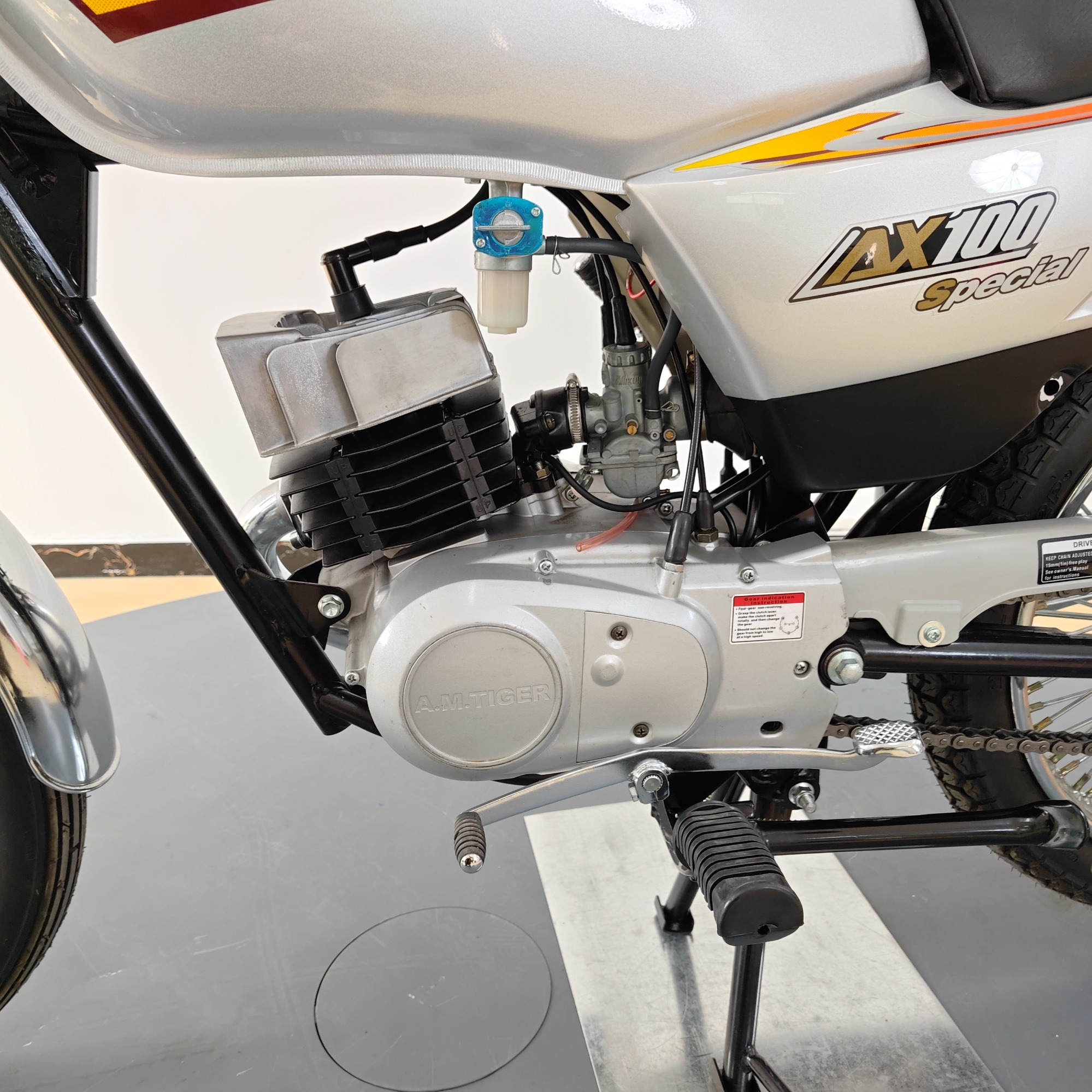

| Engine Type | 1E52FMG |
| (Cc)Displacement | 98.2CC |
| Fuel Type(Gasoline, Diesel, Hybrid) | Gasoline |
| Cylinder No. | 1-Cylinder |
| Cycle | 2-Stroke |
| /(Kw/Rpm)Rate Power | 6.8/7500 |
| /(Kw/Rpm)Net Power | 6.6/7500 |
| /Max Torque(N·M/Rpm) | 9.4/6500 |

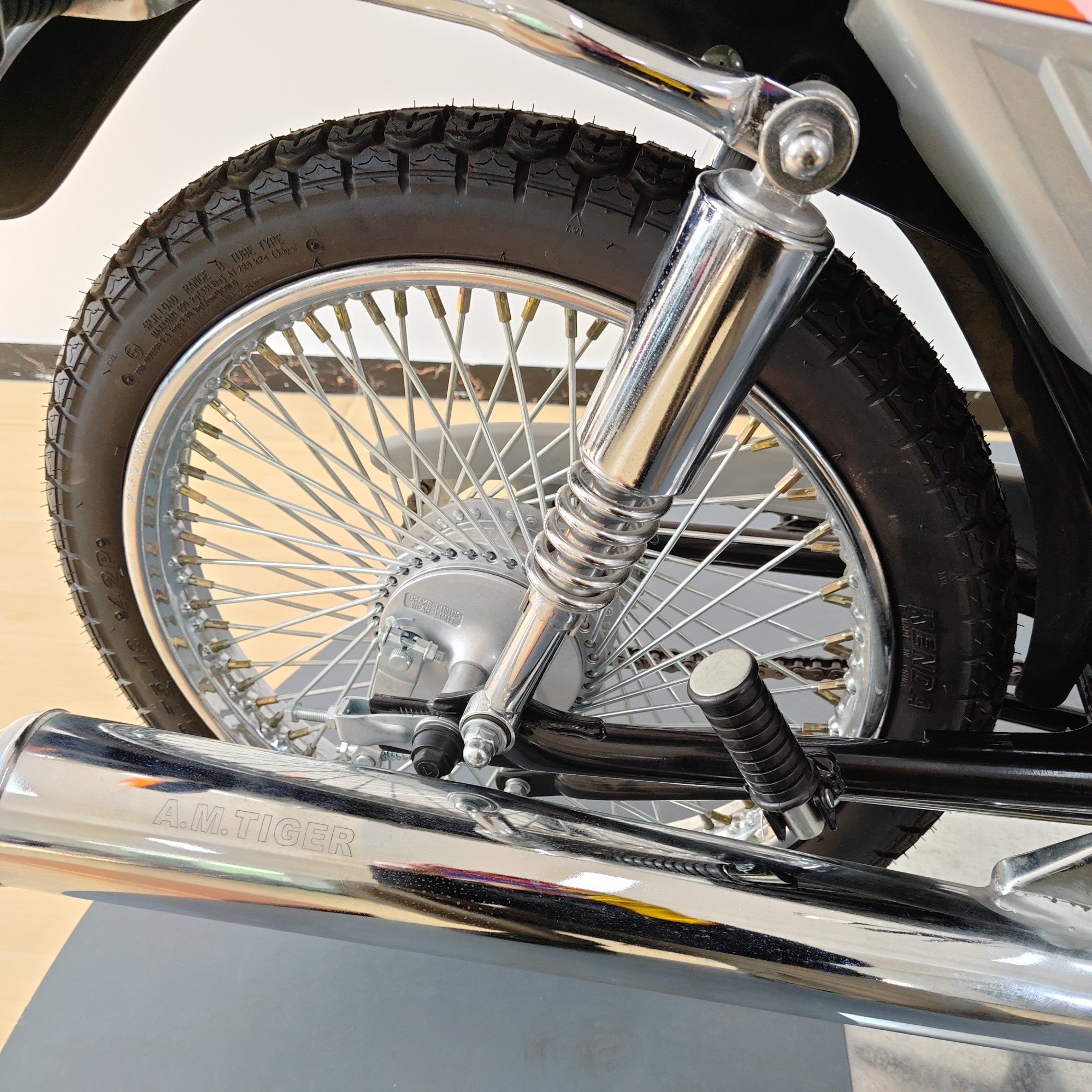

| Tyre Size | 2.50-18/2.75-18 |
| Transmission (MT/AT/CVT) | Mechanical |
| Final Drive Ratio | 3.125 |

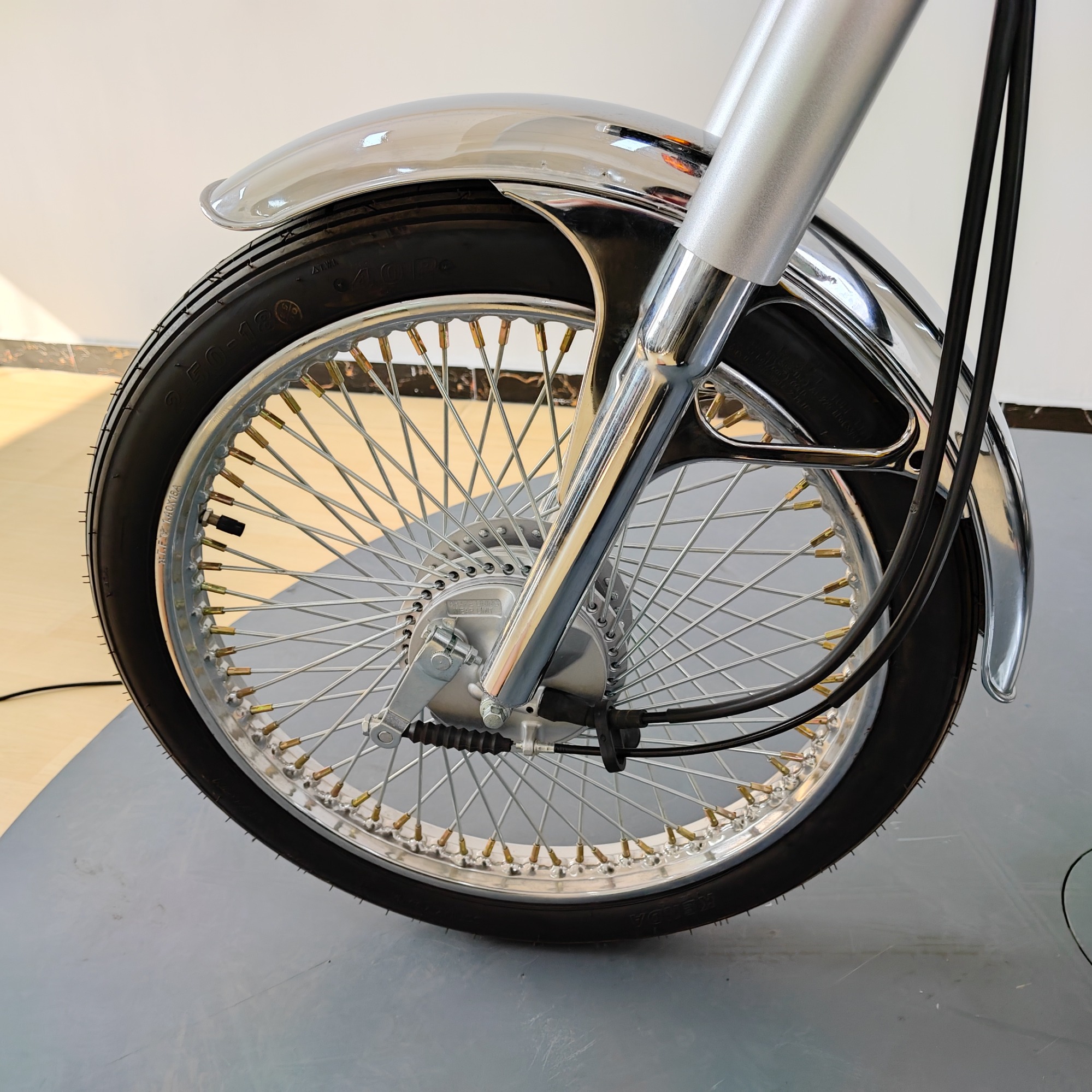

| (/) Service Brakes (Hydraulic/Mechanical) |
Front:Hydraulic/Mechanical Later:Mechanical |
| (Mm)Wheelbase | 1215 |
| (Kg)Front Axle And Rear Axle | Front 33 /Rear 49 |
| (Mm)Length*(Mm)Width*Height(Mm) | 1865*725*1050 |
| (Mm)Stroke | 46.0 |
| Compress Ratio | 6.6:1 |
| Fuel Feed | Carburetor |
| (Km/H)Max. Vehicle Speed | 85 |
| Gear Ratio | 1St Gear: 2.909; 2Nd Gear: 1.800, 3Rd Gear: 1.278; 4Th Gear: 0.955 |
| (Kg)GVW | 232 |
| (Kg)Front Axle And Rear Axle | Front 93/Rear 139 |
| (Kg)Kerb Weight | 82 |
| Contaier LoadingQ'tyin40'HQ | SKD:132 units CKD:240units |
