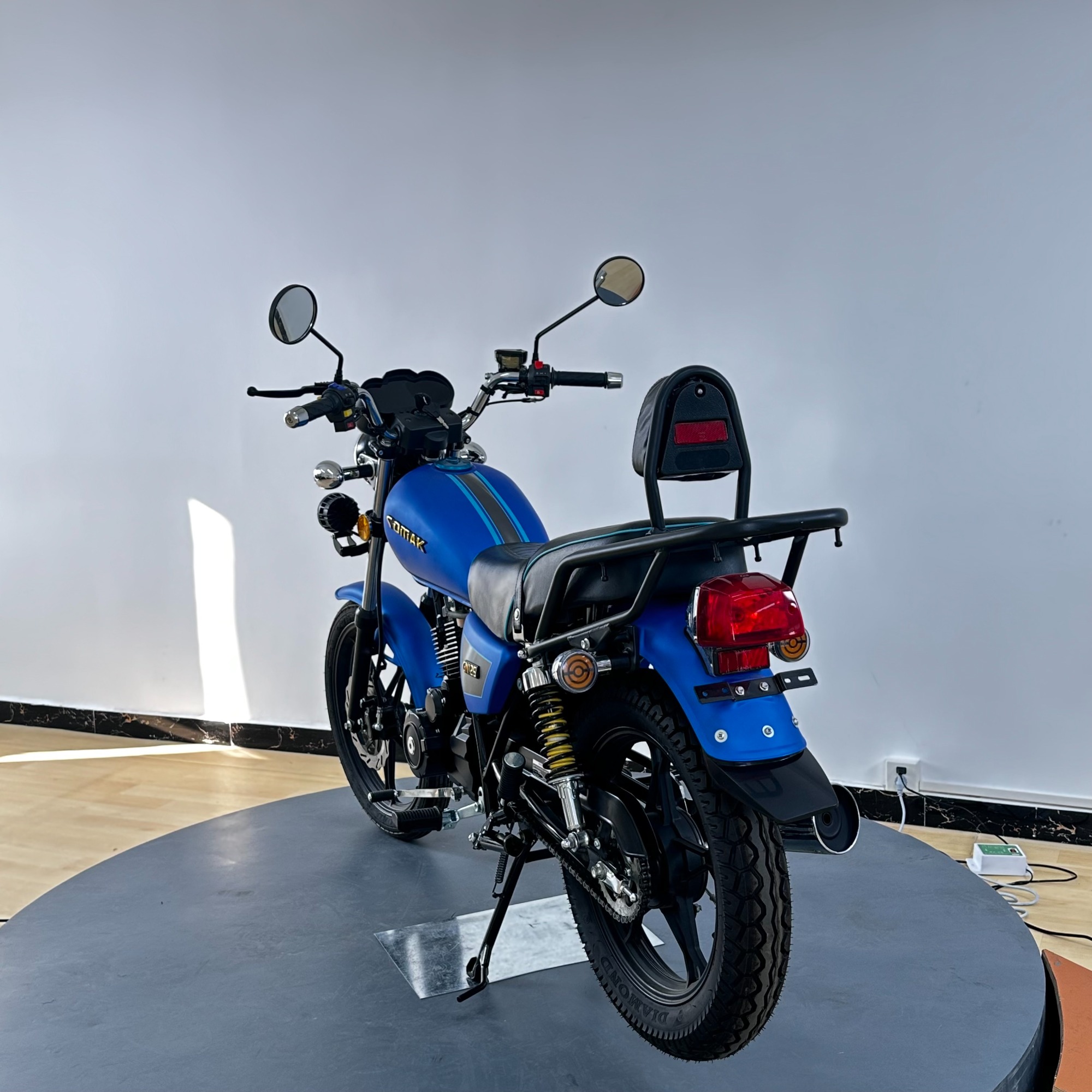

| MODEL | CJ-TZ150-3 |
| SPECIFICATIONS: | |

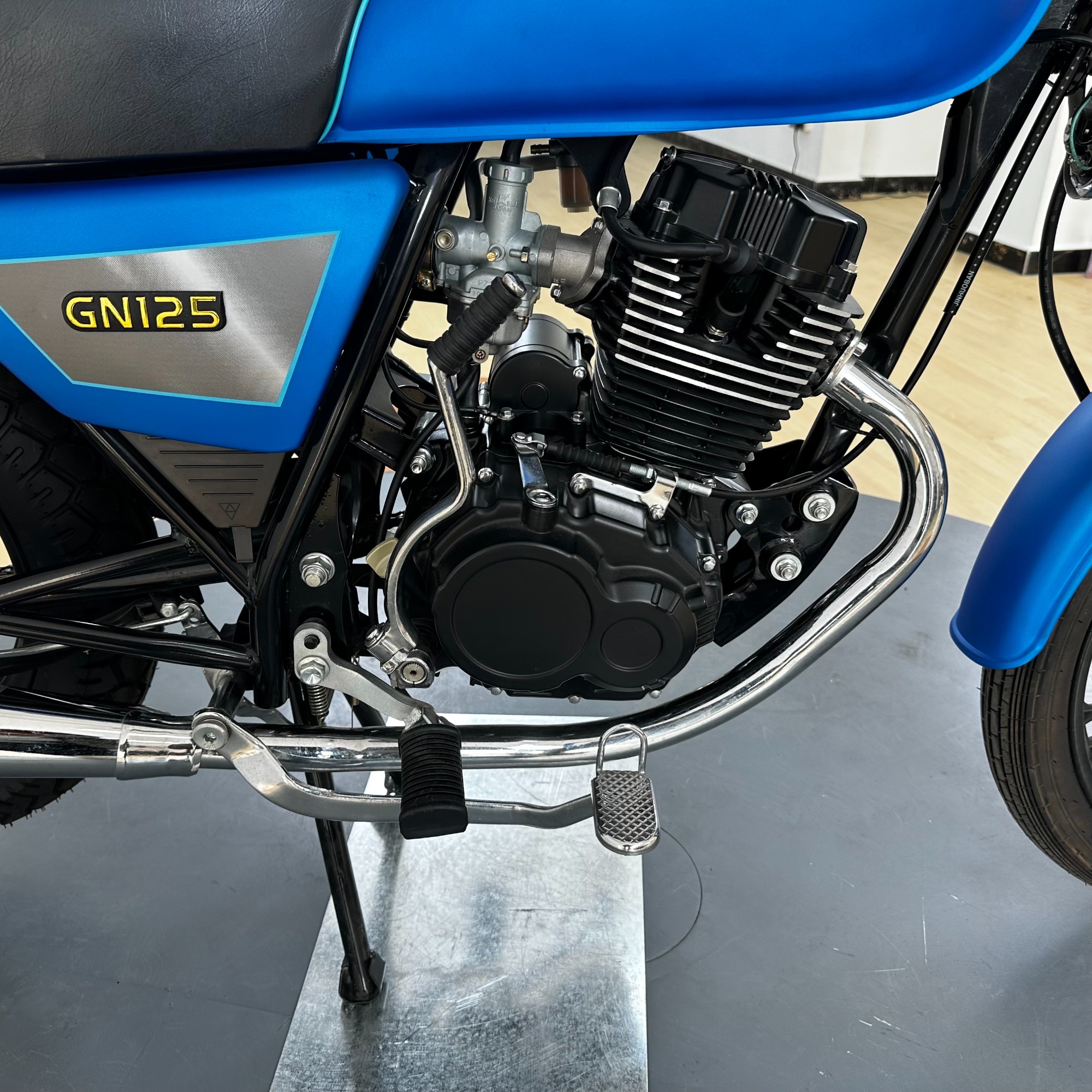

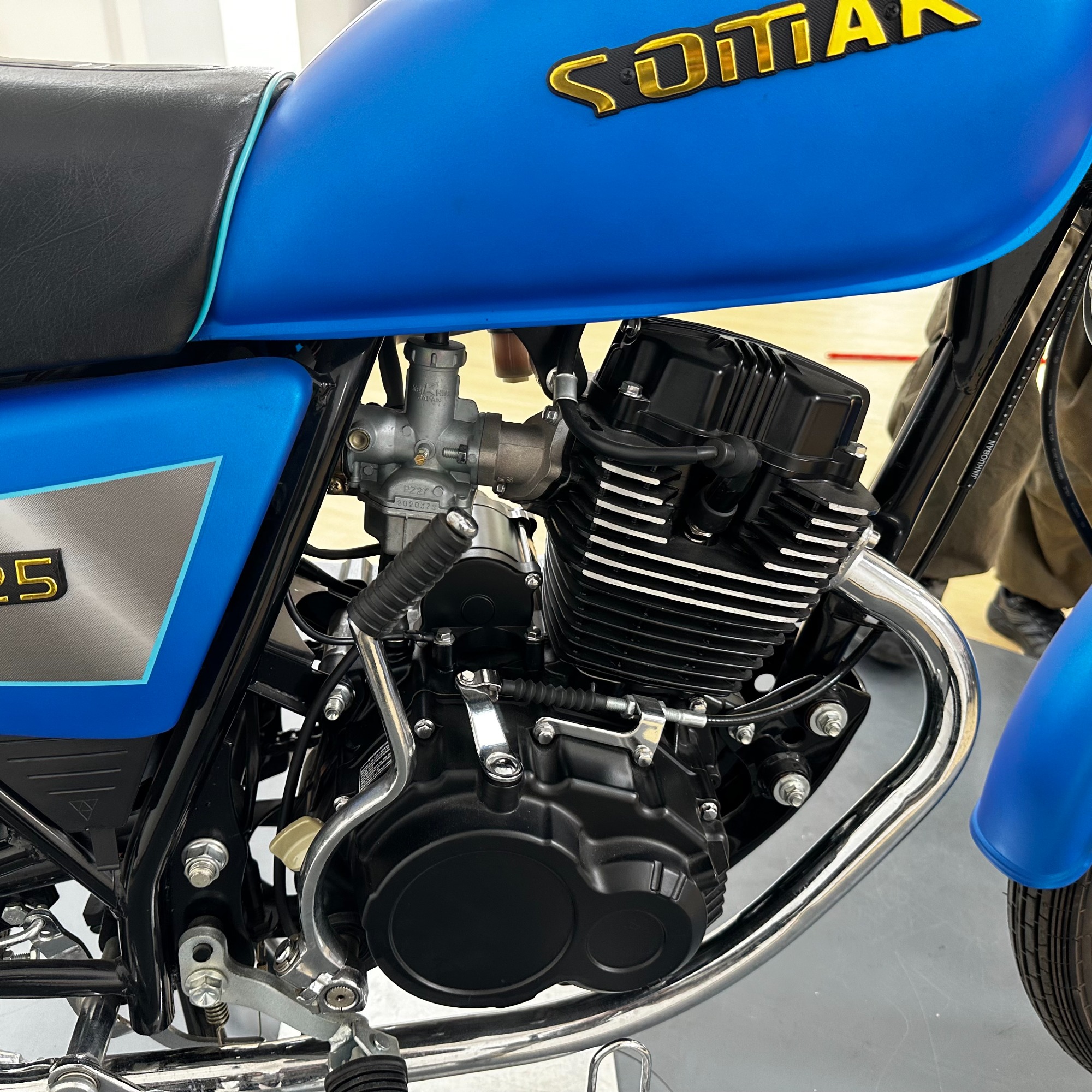

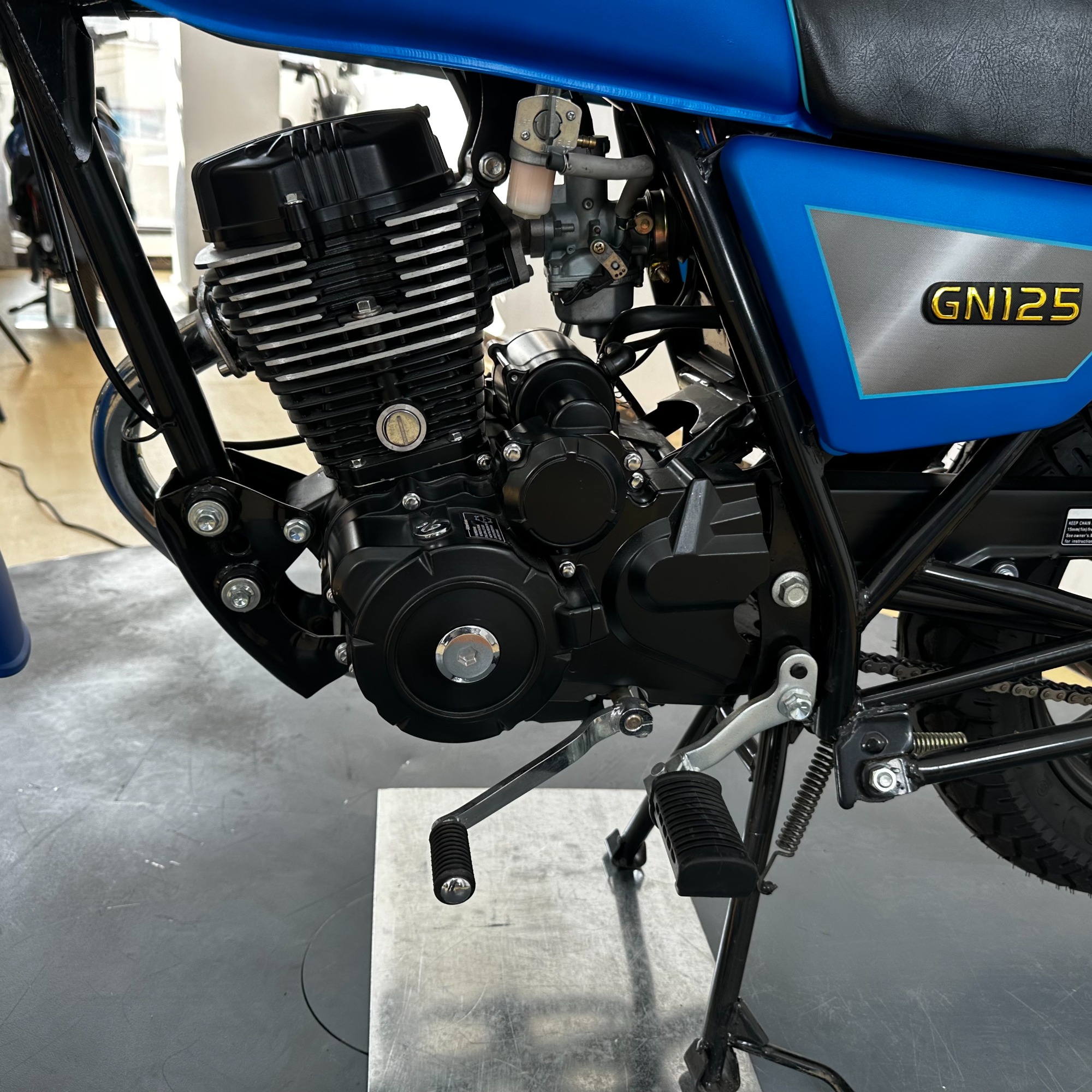

| Engine Type | Euro I 150 cc Rotary Engine with 15 Teeth Small Sprocket International 5-Speed Gear Negative Wire Side Cover Optional |
| Engine Displacement | 149 cc |
| Engine Configuration | Single Cylinder Four-Stroke |
| Engine Carburetor | PZ27 |
| Cooling System | Air Cooled |
| Ignition System | CDI / DC CDI |
| Combustion Type | Spark Ignition |
| Starting System | Electric Start and Kick Start |
| Max Power | 8.2 kW at 8500 rpm |
| Max Torque | 9.8 Nm at 7000 rpm |
| Compression Ratio | 9.2:1 |
| Bore and Stroke | 62 mm * 49.5 mm |
| Fuel Type | Gasoline |

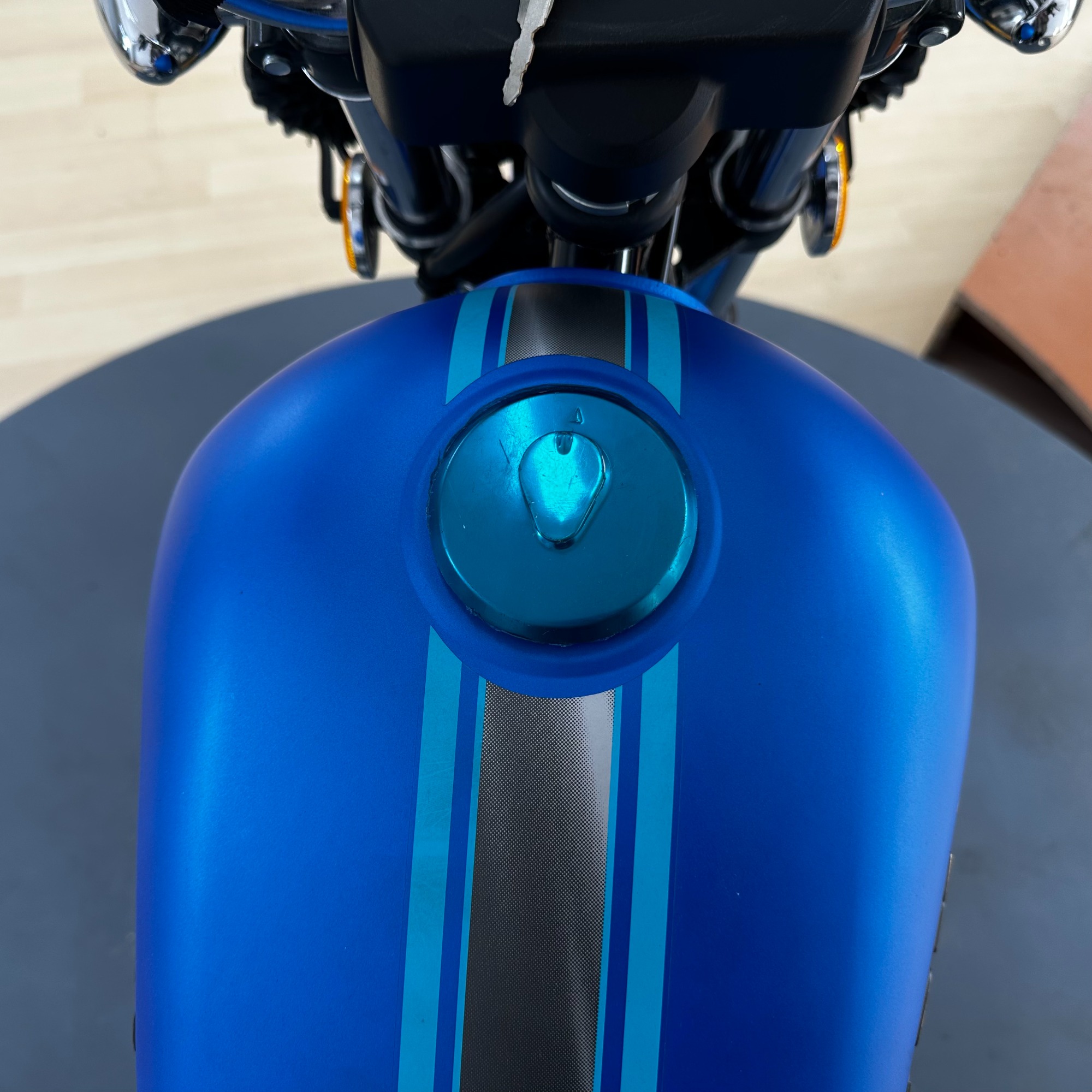

| Fuel Tank Capacity | 14 L |
| Fuel Consumption | 1.83 L per 100 km |
| Battery | Dry Cell Battery |
| Front Tyre: | 2.75-18 |
| Rear Tyre: | 110/90-16 |
| Frame Finish: | Black Painted |
| Frame Coding Mode: | Factory Code |
| Luggage Carrier: | Electroplated Rack |
| Rim: | Spoke Wheel |

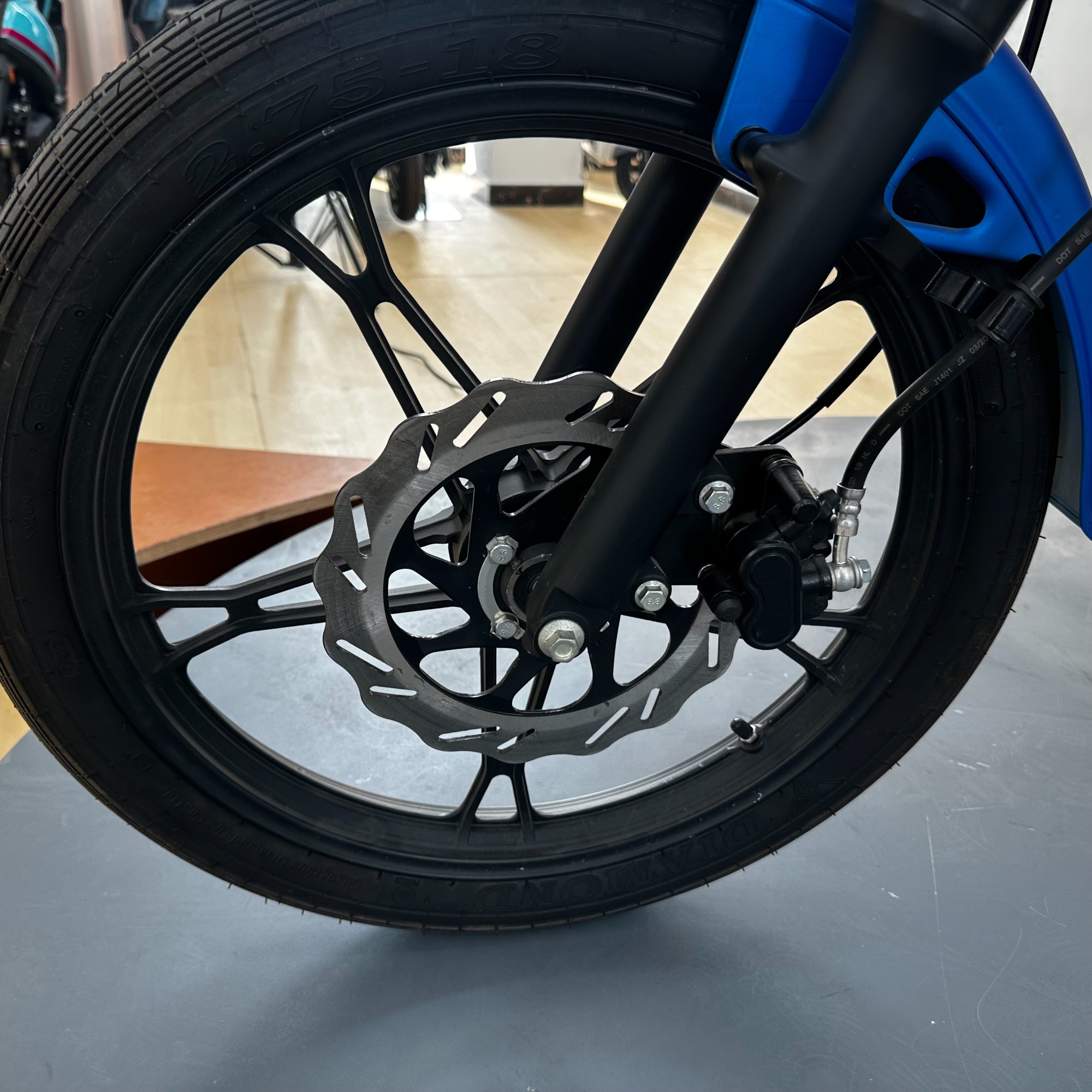

| Brake System: | Front Disc Brake Rear Drum Brake |

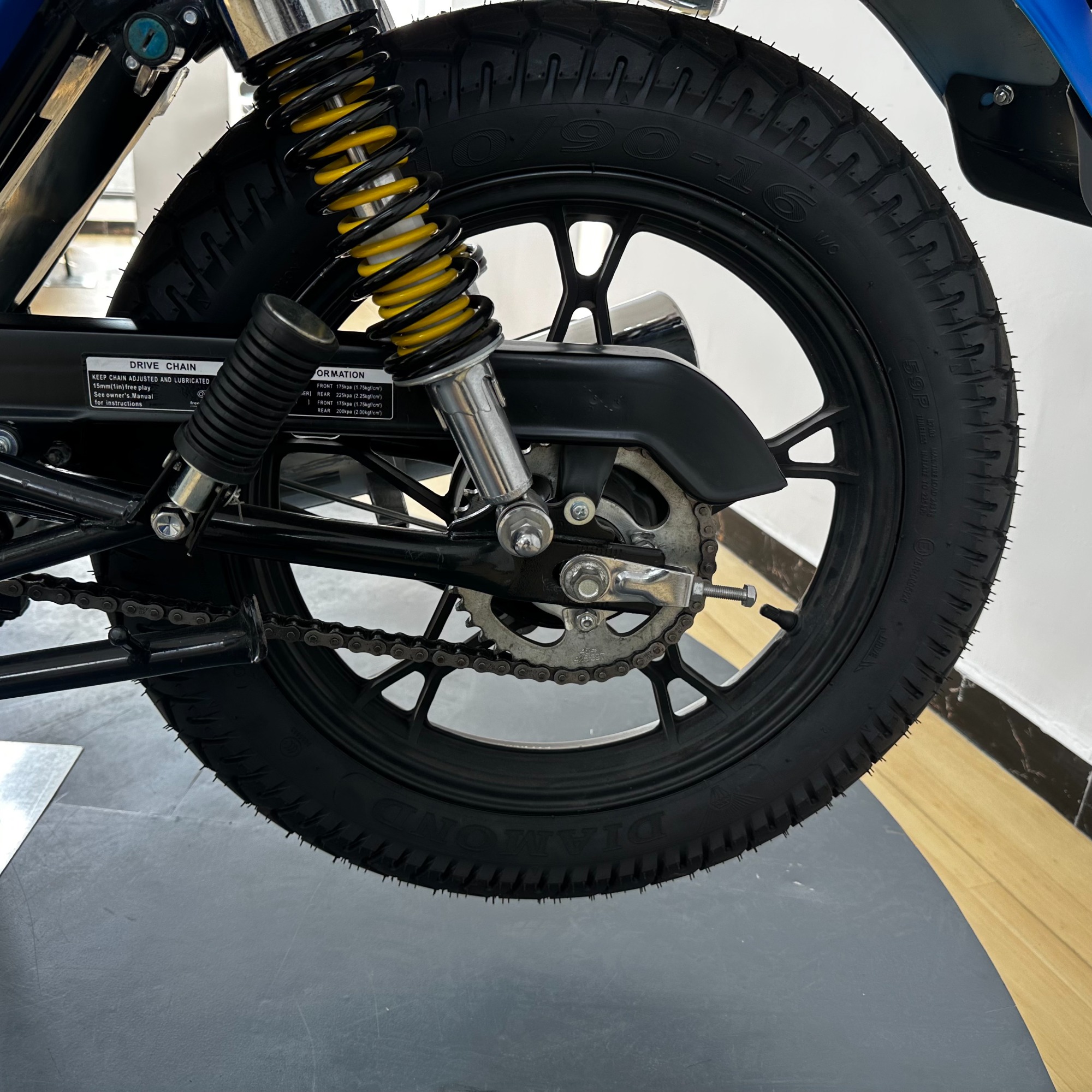

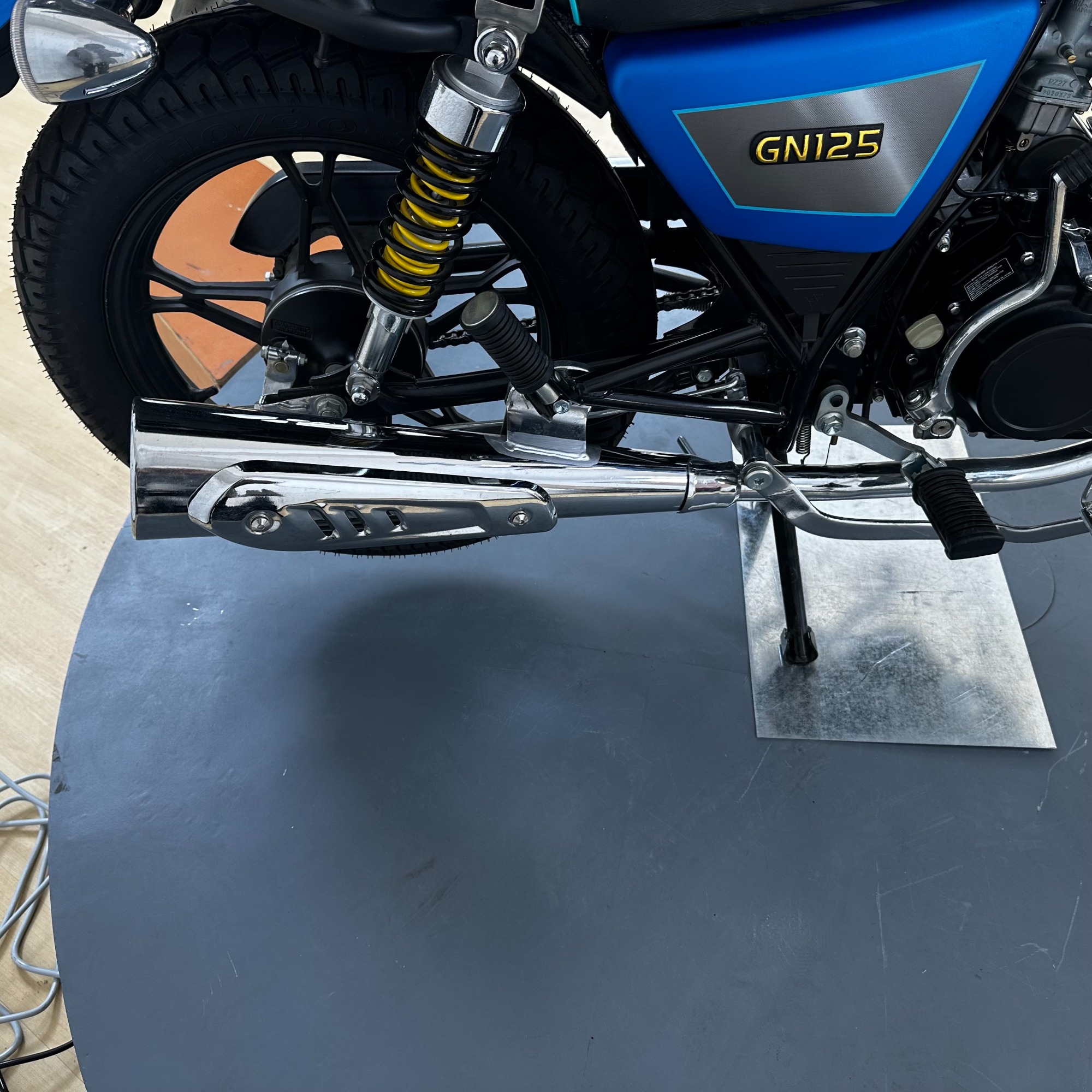

| Shock Absorber: | Rear Shock Absorber with Long Dust Cover Front Length 310 mm Rear Length 760 mm |
| Fuel Tank Capacity: | 12 L |

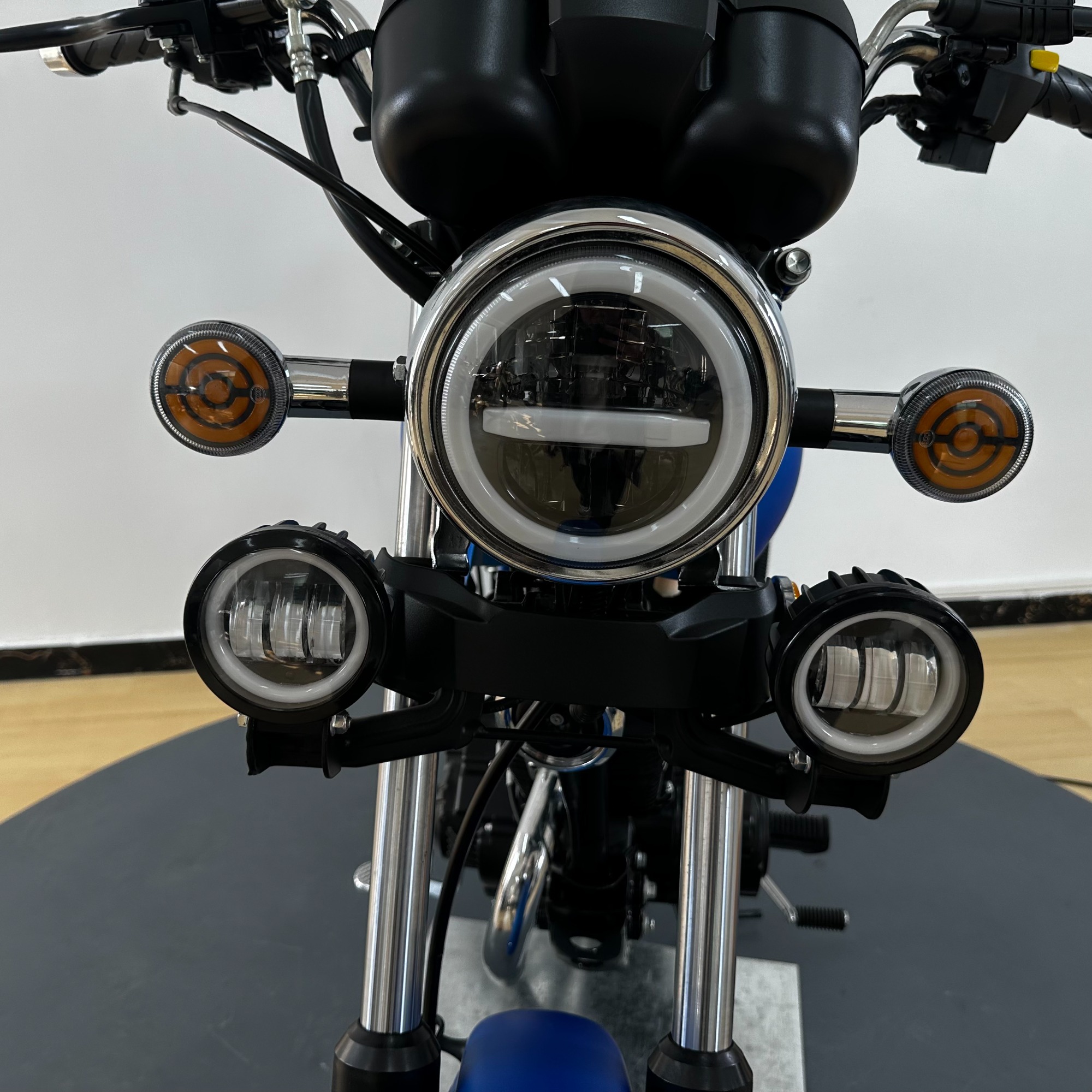

| Headlight: | Round Headlamp |

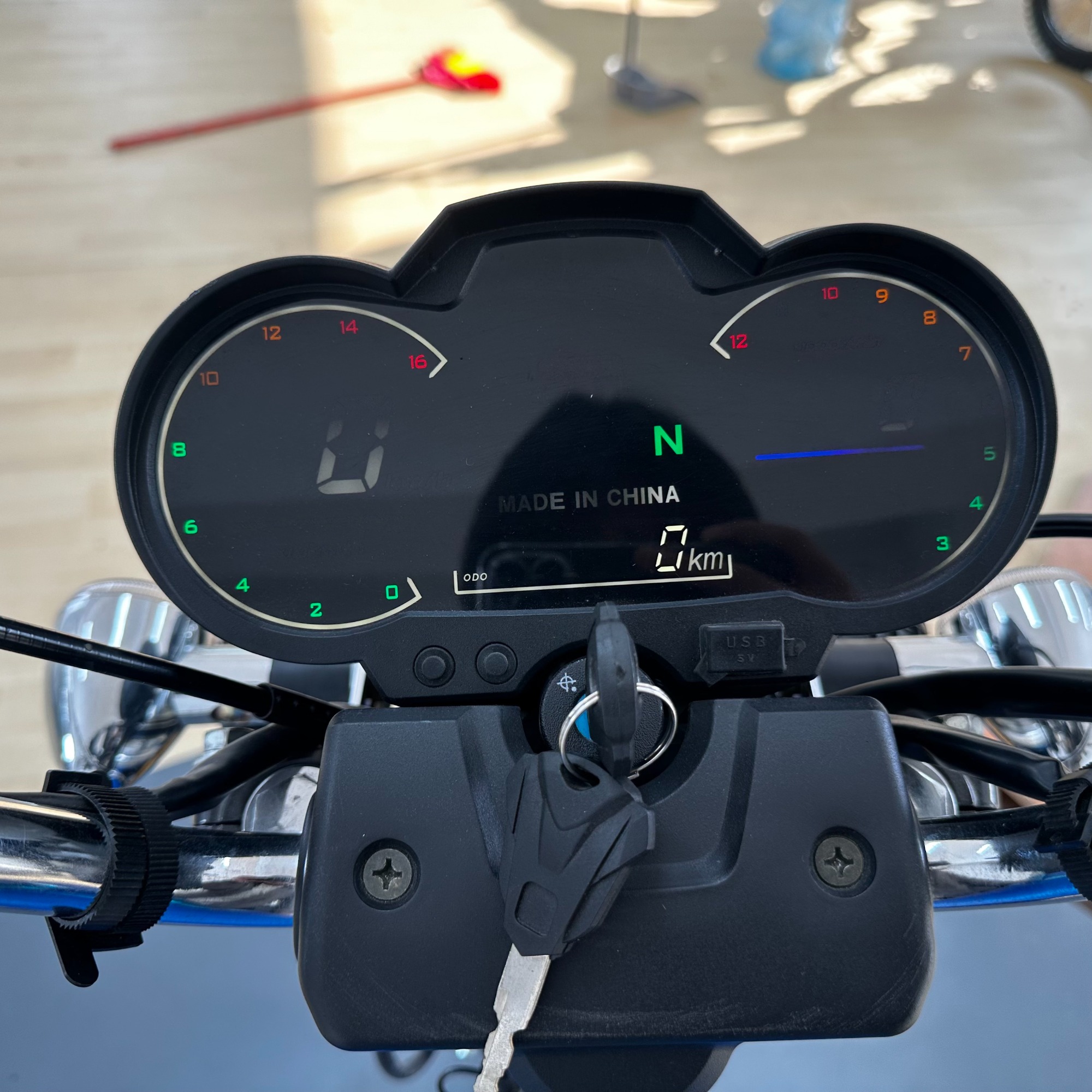

| Meter Style: | Round Meter |
| Battery: | Maintenance Free Battery |
| Other Configuration: | Without Anti Theft Device Without MP3 and Other Promotional Products |
| Packaging Method: | CKD 7 Layers Packaging with Hard Waterproof Protection |
| Wheelbase | 1260mm |
| Ground Clearance | 210mm |
| Dimensions L*W*H | 1970 * 750 * 1070 mm |
| Packing Size | 1680 * 440 * 840 mm |
| Net Weight | 115 kg |
| Gross Weight | 130 kg |
| Max Payload | 200 kg |
| Container Loading (40HQ): | CKD 210 Units / SKD 126 Units |
